SAAI HEALTH CARE EQUIPMENTS

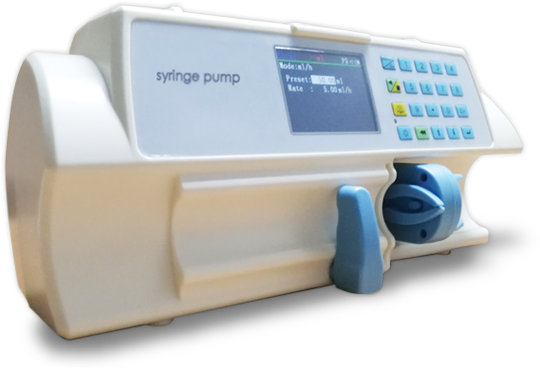

Syringe Pump AMS 321

SALIENT FEATURES

Clear & obvious screen information with big LCD;

Easy syringe installation with "Jaw opening" Mechanism structure;

Suitable to all type syringe;

Automatically identify 5ml, 10ml, 20ml & 50/60ml syringes;

8 grades adjustable jam-pressure;

Stackable multi-channel syringe pump

Technical Specifications

Safety Control: Mufti-supervision technology, self-test when turn-on and real-time self-test when infusing

Display: 320*240 Dot-matrix LCD

Applicable Syringes: 5ml, 10ml, 20ml, 30, 50ml, Auto-recognize

Flow Rate Accuracy: ±2% （Mechanical Accuracy ±1%）

Limited Volume Range: 0.1～9999.9ml

Infused Volume Display: 0.1～9999.9ml

Applicable Syringes Brand: Preset 15 Kinds, and user added

KVO Flow Rate: 1.0~5.0ml/h

Body Weight/Drug Mode Rate: 10 Optional (ml/h, ml/min, mg/h, ug/h, mg/min, ug/min, mg/kg/h, mg/kg/min, ug/kg/h, ug/kg/min)

Occulusion Pressure: 8 Level Sensitivity, 20～140KPa, Dynamic Pressure

Alarms: Syringe disloacated, Syringe handspike Err., Pre-alarm of completed limited volume, Completed limited volume, Near empty, Empty, Occulusion, Bolus volume finished, Low battery, Battery empty, Reminder alarm

Power Supply: AC 100～240V, 50/60Hz, Power consumption ≤25VA

Internal Battery: Ni-MH, 12V, 800mAh(or Li, 11.1V, 1800mAh)

Battery Operation: 3.0(or 7) Hours at 25ml/h

Classication: Class I, Internal power supply, CF type, IPX4

Data Communication Interface: wireless (accessories)

Operating Conditions: Temperature +5℃～+40℃, Relative humidity 20%～95%

Package Size: 3200px(W)*2125px(H)*22(D)cm

Package Weight: 3.5kg

Flow Rate Range

1.5ml syringe 1ml/h～200ml/h 2.10ml syringe 1ml/h～300ml/h

3.20ml syringe 1ml/h～400ml/h 4.30ml syringe 1ml/h～600ml/h

5.50ml syringe 1ml/h～1200ml/h

Purge Rate

1.5ml syringe 150ml/h

2.10ml syringe 220ml/h

3.20ml syringe 330ml/h

4.30ml syringe 540ml/h

5.50ml syringe 800ml/h

Bolus Flow Rate Range

1.5ml syringe 1ml/h～200ml/h

2.10ml syringe 1ml/h～300ml/h

3.20ml syringe 1ml/h～400ml/h

4.30ml syringe 1ml/h～600ml/h
