SAAI HEALTH CARE EQUIPMENTS

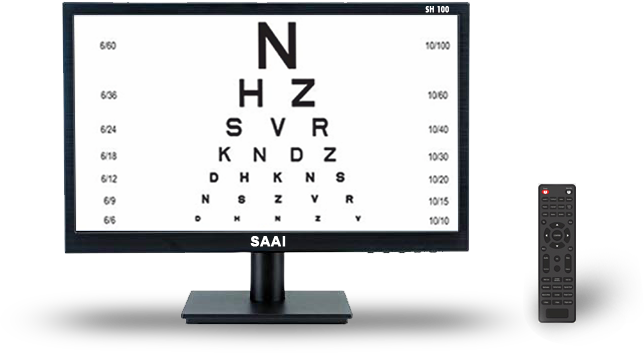

SH 100

SALIENT FEATURES

1% Contrast sensitivity adjustment for all optotypes

Reverse mode for all charts

Smart charts with random display function for all optotypes

2 Min. Speedy refraction using the 4 navigation keys

90+ Patient education charts for various eye diseases

Adaptable to smaller rooms with precise adjustment of distance

Compensation for red green filter

Feather touch remote control with direct commands for all tests

No moving parts

Technical Specifications

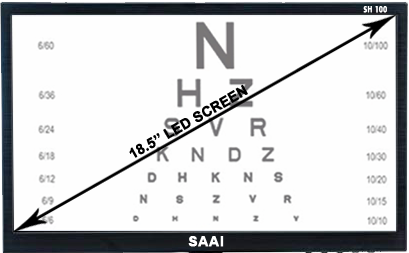

LCD type : 18.5” LED Display
Luminance : 200 cd/m2
Remote Control : Infrared
Working Distance : 1.8m – 6.5m
Power Requirements : 110-230 VAC, 50/60Hz
Power Consumption : 35W
Unit Weight : 3 Kg
Gross Weight : 3.5Kg
Unit Dimensions : 44.6 x 16.6 x 35.4 cm
packing Dimensions : 50 * 38 * 14 cm

Standard Tests

Snellen

Logmar

Isihara (40 Plates)

Maddox

Worth Four Dots

Astigmatism

Contrast Sensitivity

Duochrome

Cross Cylinder

Display Modes

Single Character

Single line

Single Column

Black in White

Multi Line

H Mask

V Mask

Optotypes

Sloan Letters

Numbers

Tumbling E

Landolt Rings

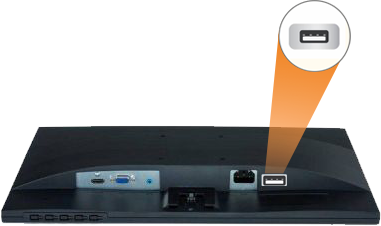

USB

A dedicated USB port for instant loading of images.

Display size

Randomization

Get more accurate results by avoiding patientsmemorizing the letters

Just click the shuffle button and shuffle the letters instantly

Speedy Refraction

Save 50% of your Refraction time by using these navigation keys

Dedicated Navigation keys to browse quickly from one category to another

28 Distances

6 feet to 22 feet in direct mode

12 feet to 22 feet in reverse mode charts can also be reversed

23 Languages

11 national languages

12 international languages

Advanced display modes

Contrast and Duochrome

Now the contrast (1% to 100% ) function can be applied to all optotypes and language charts. A single touch will activate the duochrome function for all optotypes.

Intensity of red and green can also be adjusted.
