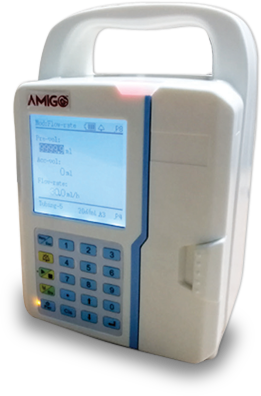

Infusion Pump AMS 737

SALIENT FEATURES

Built-in thermostat: 30-45℃ adjustable. This mechanism warms IV tubing to increase infusion accuracy. This is a unique feature compare to worldwide Infusion Pumps.

Applicable for adult, Pediatrics and NICU (Neonatal).

Anti-free-flow function to make infusion safer.

Real-time display of infused volume / bolus rate / bolus volume / KVO rate.

Visible on-screen 9 alarms.

Change flow rate without stopping the pump.

Technical Specifications

Pumping Mechanism: Curvilinear peristaltic

IV Set: Compatible with IV sets of any standard

Flow Rate: 0.1-1500 ml/h (in 0.1 ml/h increments)

Purge, Bolus: 100-1500 ml/h (in 1 ml/h increments) Purge when pump stops, bolus when pump starts

Bolus volume: 1-20 ml (in 1 ml increments)

Accuracy: ±3%

VTBI: 1-9999 ml

Infusion Mode: ml/h, drop/min, time-based

KVO Rate: 0.1-5 ml/h (in 0.1 ml/h increments)

Alarms: Occlusion, air-in-line, door open, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, reminder alarm

Additional Features: Real-time infused volume / bolus rate / bolus volume / KVO rate, automatic power switching, mute key, purge, bolus, system memory,key locker, change flow rate without stopping the pump

Occlusion Sensitivity: High, medium, low

Air-in-line Detection: Ultrasonic detector

Wireless management: Optional

Power Supply, AC: 110/230 V (optional), 50-60 Hz, 20 VA

Battery: 9.6±1.6 V, rechargeable

Battery Life: 5 hours at 30 ml/h

Working Temperature: 10-40℃

Relative Humidity: 30-75%

Atmospheric Pressure: 700-1060 hpa

Size: 174*126*215 mm

Weight: 2.5 kg

Safety Classification: Class Ⅰ, type CF
